Product Overview

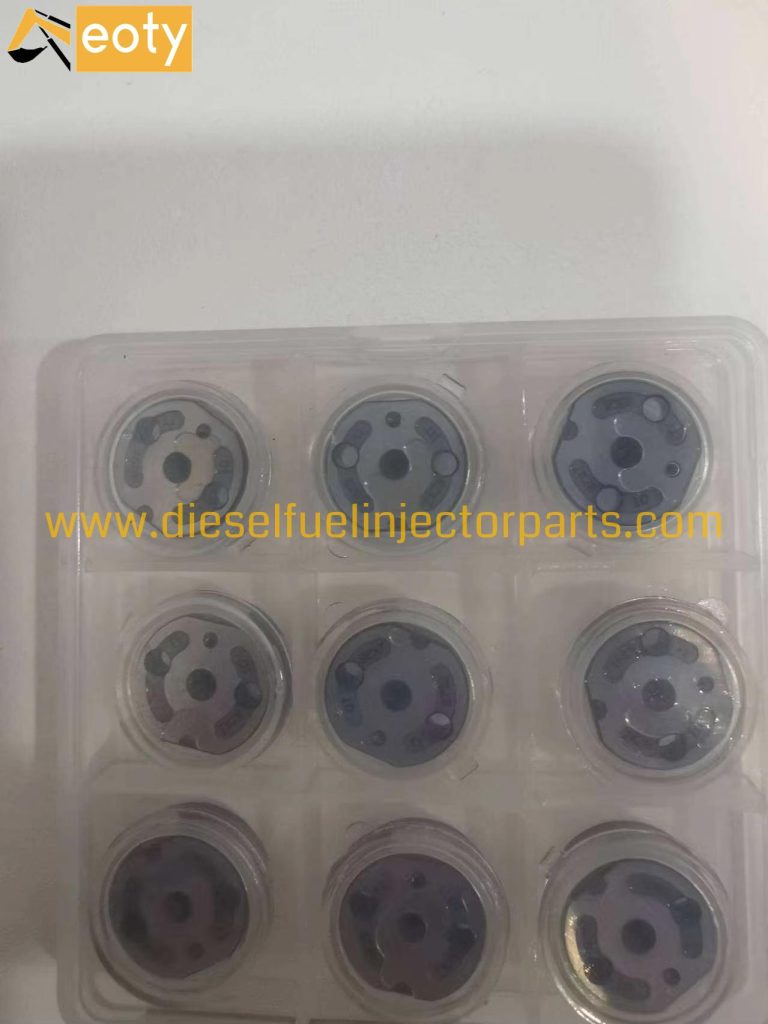

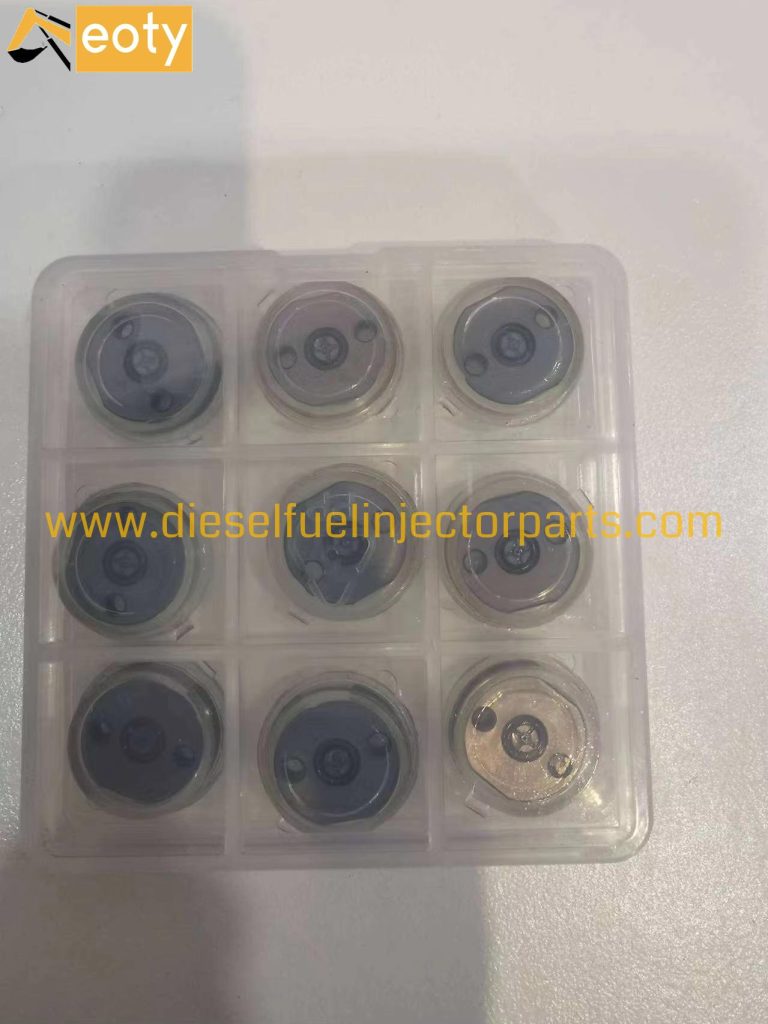

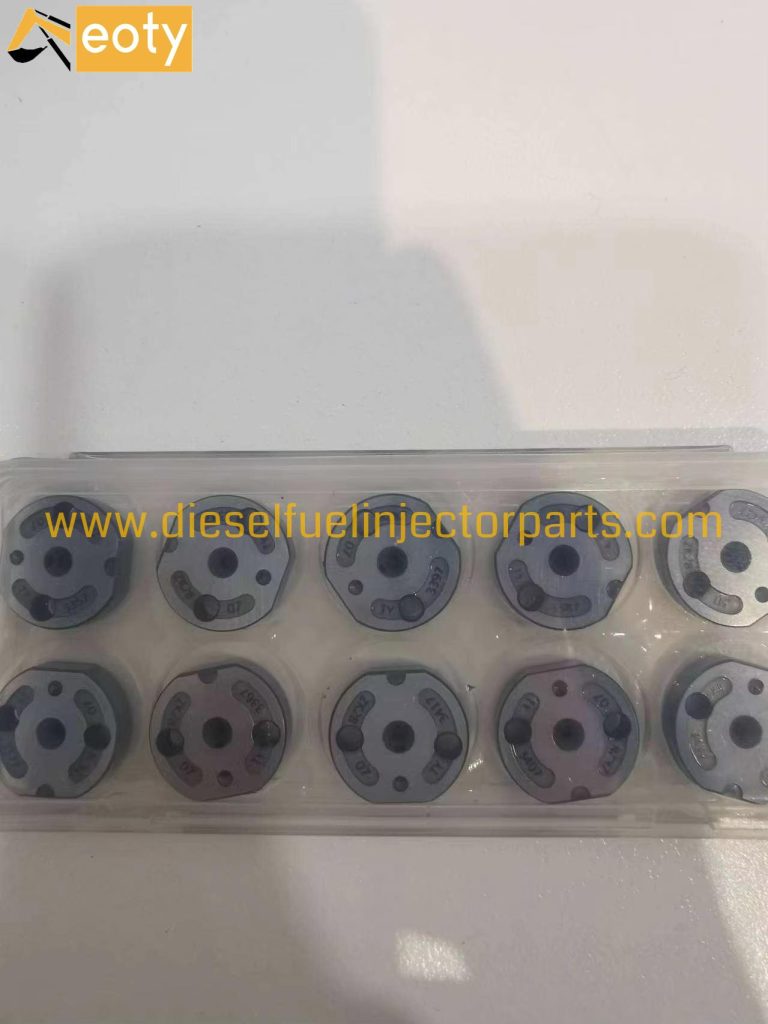

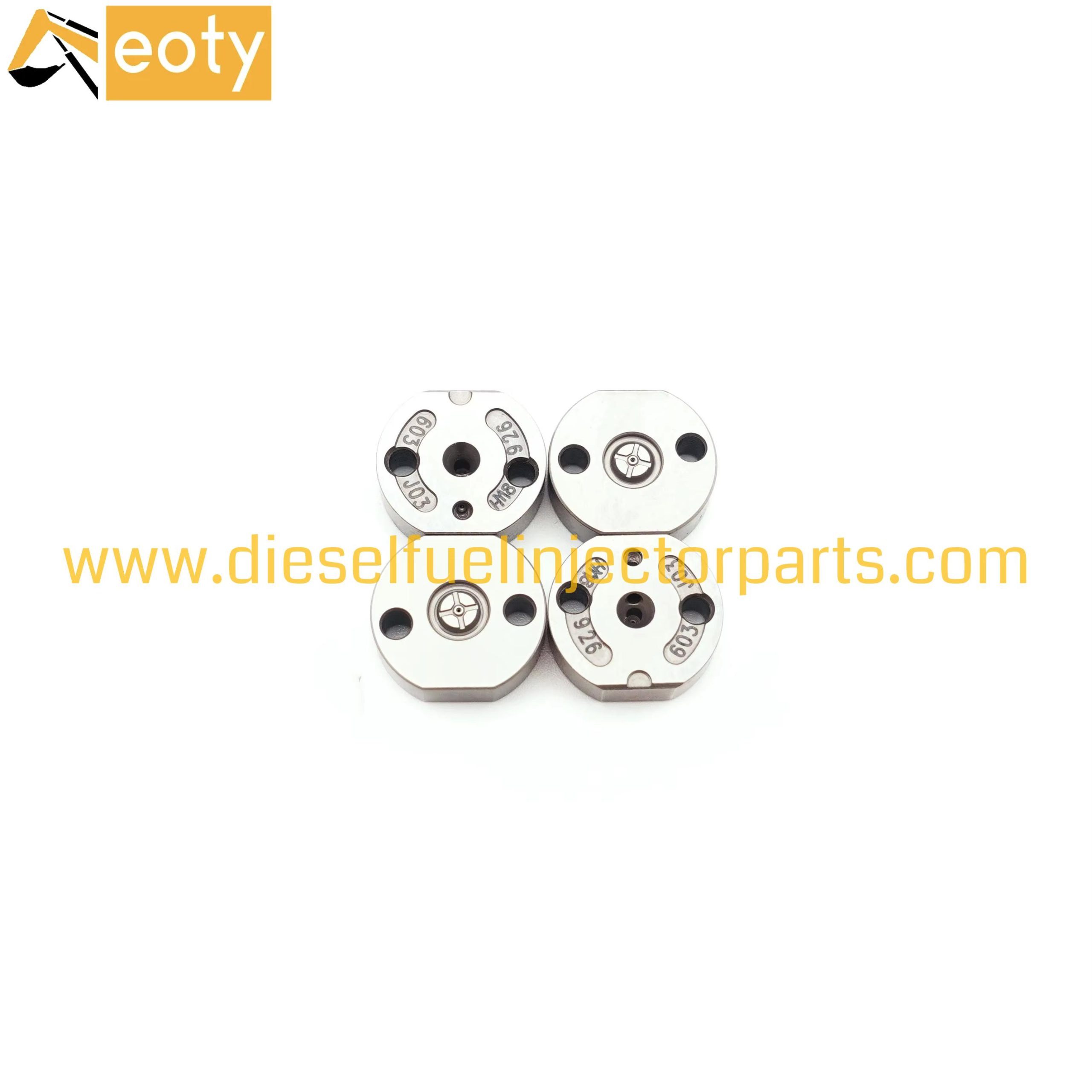

This high-precision Injector Orifice Plate 10# (also known as a Valve Plate 10#) is a critical component for diesel fuel injection systems. Designed as a direct replacement for a wide range of injector models, it ensures optimal fuel atomization and combustion efficiency. Manufactured to strict OE standards (OEM No. 166005X30A), this part is ideal for B2B buyers in the heavy equipment, automotive, and industrial engine sectors. We offer reliable global shipping to major industrial markets including North America, Europe, Asia-Pacific, the Middle East, and South America, ensuring fast delivery to ports and distribution hubs worldwide.

Key Features & Benefits

• Precision Engineered: Manufactured from high-speed steel for exceptional hardness and wear resistance, ensuring a long service life under high-pressure injection cycles.
• Optimal Fuel Atomization: The precisely machined orifice plate ensures the correct fuel spray pattern, leading to improved combustion, reduced emissions, and better fuel economy.
• 100% Professional Testing: Every unit is rigorously tested for dimensional accuracy and flow characteristics to guarantee reliable performance and a perfect seal.
• Direct Replacement: Designed as a direct swap for worn or damaged components, minimizing downtime for repair and maintenance operations.
• Cost-Effective Solution: Offers a high-quality alternative to purchasing a complete injector assembly, providing significant cost savings for fleet maintenance and rebuild shops.

Technical Specifications

OEM Cross-Reference

This Valve Plate 10# is a direct replacement for the following OEM and injector part numbers. It is the standard size (10#) orifice plate used in these models:

• OEM Number: 166005X30A
• Compatible Injector Models:
• 095000-5215
• 095000-5271
• 095000-5960
• 095000-5284
• 095000-5653
• 095000-5782
• 095000-6250
• 095000-6353
• 095000-6971
• 095000-7172
• 095000-6890

Compatibility

This orifice plate is a standard service part for a wide range of diesel injectors, particularly those used in automotive, light truck, and industrial applications. It is designed for common rail and other high-pressure fuel injection systems where precise metering is required. This specific 10# plate is a common replacement size for many Japanese and Chinese diesel engine applications.

Global Supply & Distribution

As a leading supplier based in Shandong, China, we provide a reliable and efficient global supply chain for B2B partners.

• Worldwide Shipping: We ship to all major continents, including North America, South America, Europe, Africa, the Middle East, and Asia-Pacific.
• Fast Delivery: Standard delivery time is 3-7 days for in-stock items via express courier (DHL, FedEx, UPS, TNT) or air freight. Sea freight is available for bulk orders.
• Major Markets Served: We have a strong track record of supplying parts to the USA, Canada, UAE, Saudi Arabia, Germany, UK, Australia, and Southeast Asia.
• Export Experience: We handle all international trade documentation and customs compliance to ensure a smooth transaction for our global clients.

Quality Assurance

• Manufacturing Standards: Produced in a certified facility using precision CNC machining and heat treatment processes.
• Testing: 100% professional testing for dimensional accuracy, surface finish, and hardness to ensure a perfect fit and long service life.
• Warranty: We stand behind the quality of our parts with a full 1-year warranty against manufacturing defects.

FAQ

Q: What does “10#” mean in the product name?
A: The “#10” refers to the specific size or flow rating of the orifice hole in the plate. This is a standard sizing used in many injector rebuild kits to denote the fuel metering orifice diameter. It is critical to select the correct size (10#) for your specific injector model to ensure proper fuel delivery and engine performance.

Q: Is this a direct replacement for the 095000-5215 injector?
A: Yes, this Valve Plate 10# is a direct replacement component for the 095000-5215 injector and the other 095000-xxxx models listed in the cross-reference section. It is the internal orifice plate that sits inside the injector nozzle. It is not the entire injector assembly, but a critical internal part for a rebuild.

Q: What is the recommended installation procedure?
A: Installation should be performed by a qualified diesel technician. The work involves disassembling the injector, carefully removing the old plate, cleaning the mating surfaces, and installing the new 10# plate with the correct orientation. It is recommended to replace the other sealing washers and O-rings during the injector rebuild to ensure a proper seal. Proper torque specifications must be followed during reassembly.
